Description

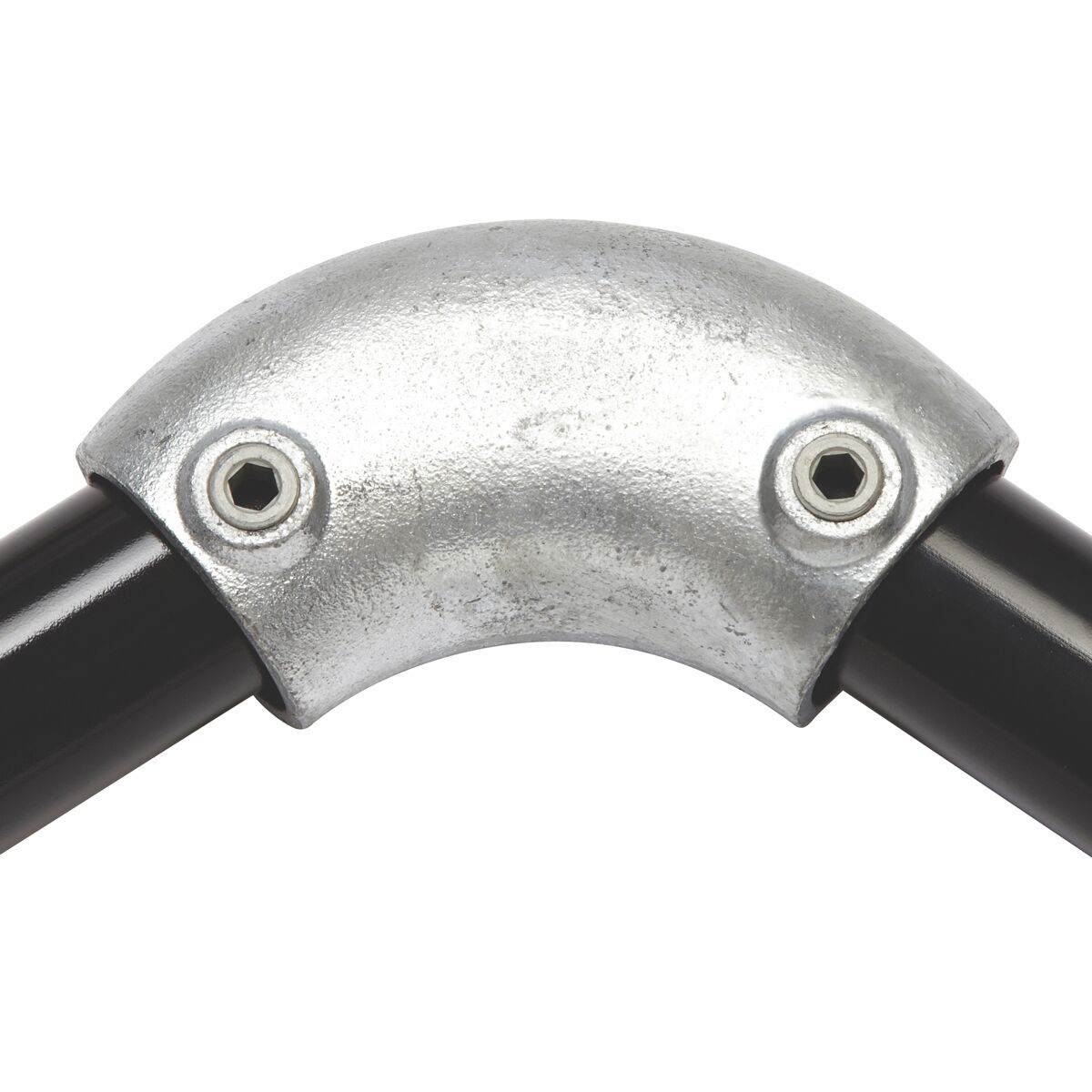

The C05A Variable Elbow covers joints between 11° and 30°, the range that suits most ramps and shallow stair flights. Both tubes stop inside the fitting and the angle is set on site.
Use it with the C29 or C229 adjustable tees to carry a handrail down a slope, and with the C59 angle base flange where an upright leans with the run.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

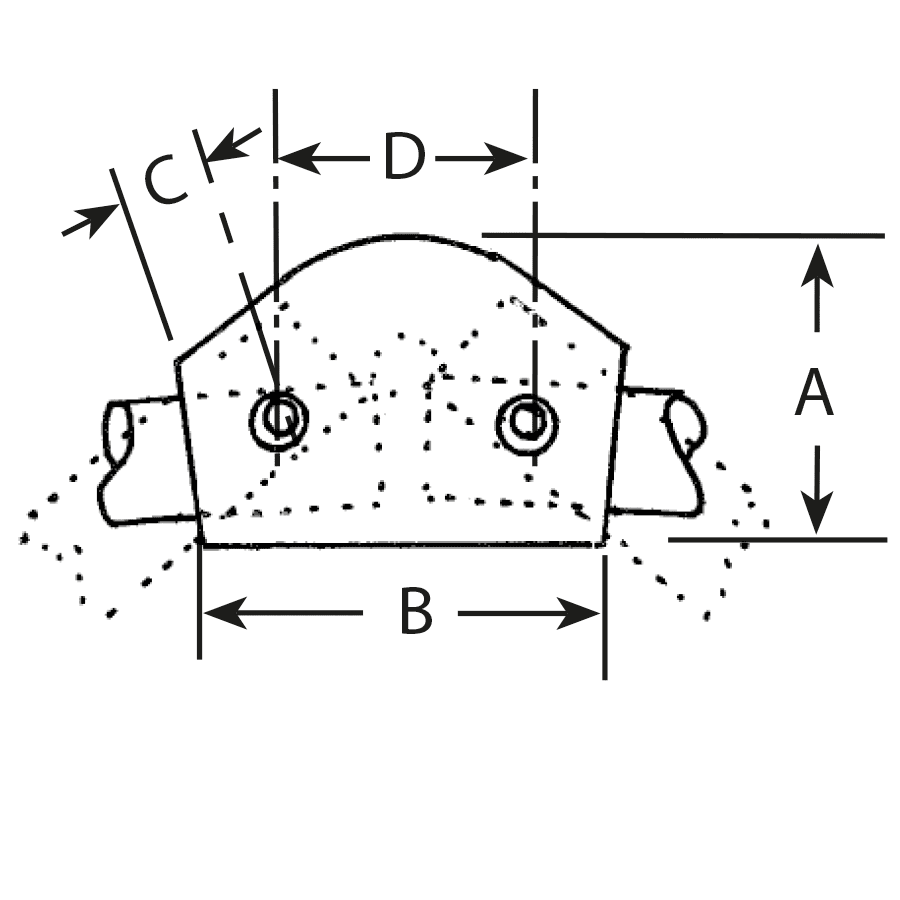

- Dimensions and weight: available on request from our technical team
Use with
C05 Variable Elbow (15° to 60°), C229 Single Socket Tee (11° to 30°), C59 Angle Base Flange (11° to 30°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
