Description

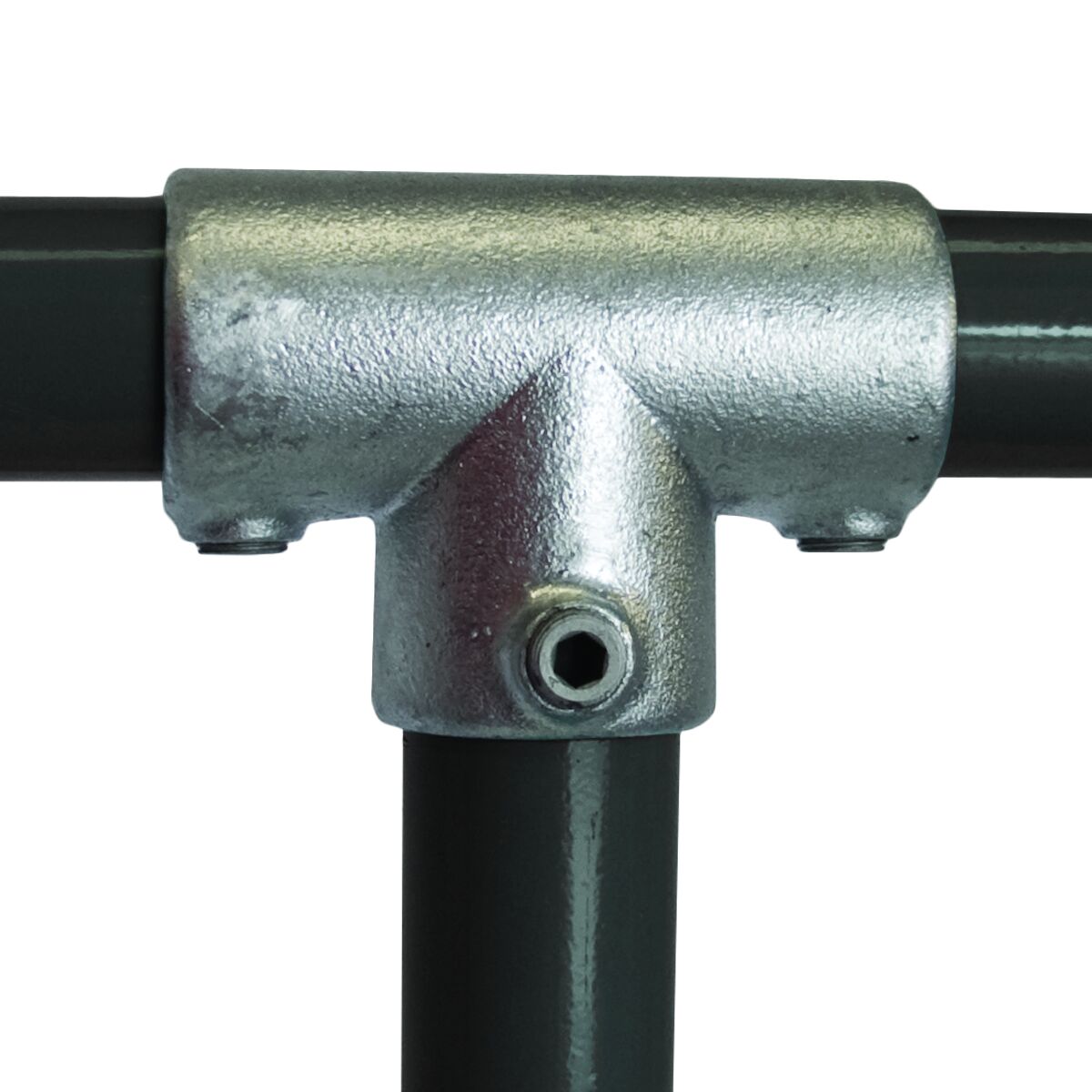

The C04 Long Tee does the same job as the C03 Short Tee, a butt joint between two tubes at right angles, but with a longer through socket that lets two lengths of tube meet inside the fitting. Use it where a rail joint has to fall at a post rather than between posts.
It is often used on railing ends and tops. Where no joint is needed at the post, the shorter C03 is the lighter, cheaper choice.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

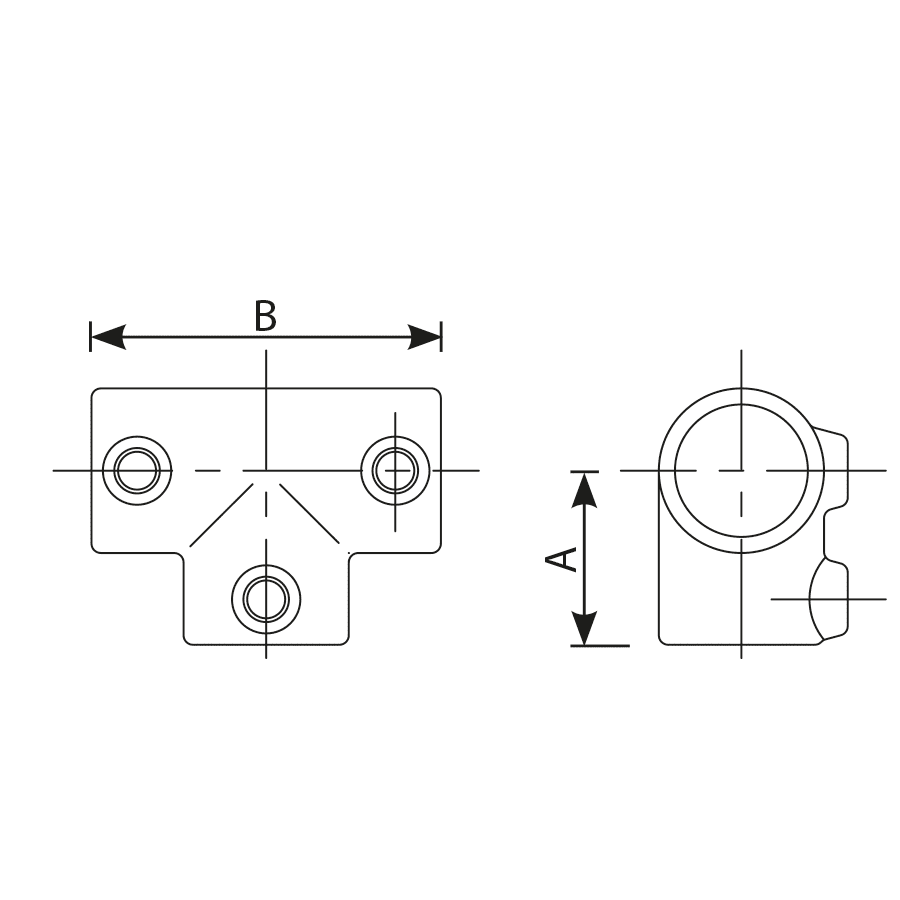

- Dimensions and weight: available on request from our technical team
Use with
C03 Short Tee, C02 90° Elbow, C00 Sleeve Joint
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
