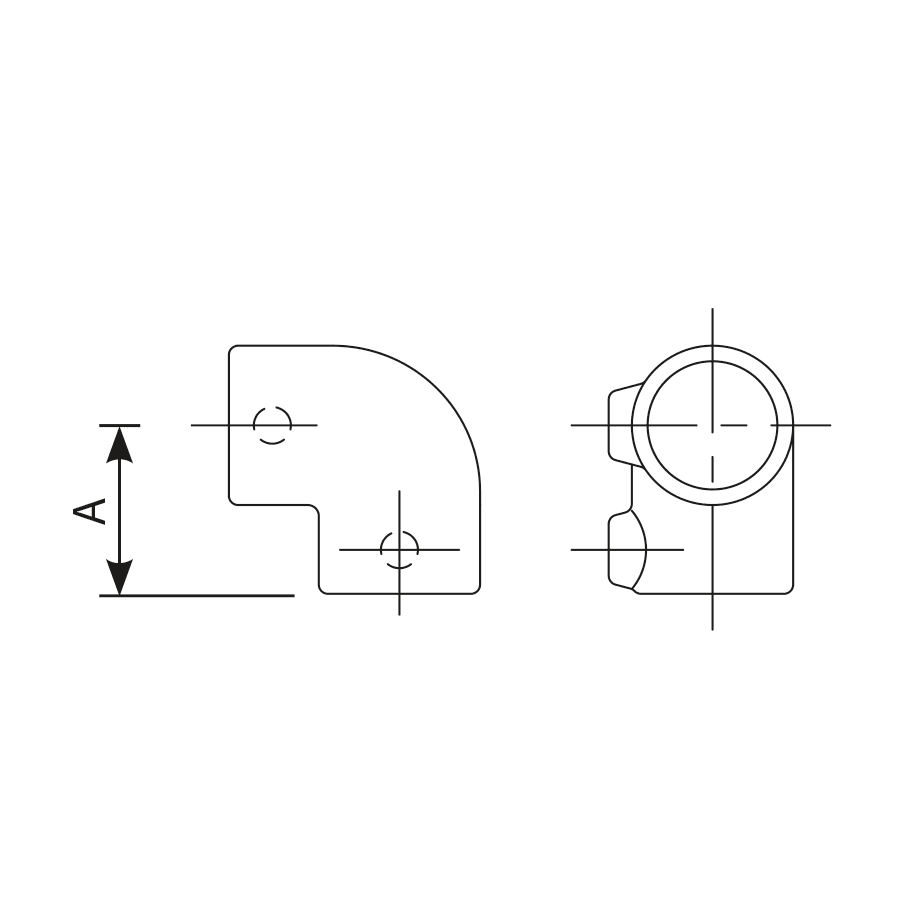

Description

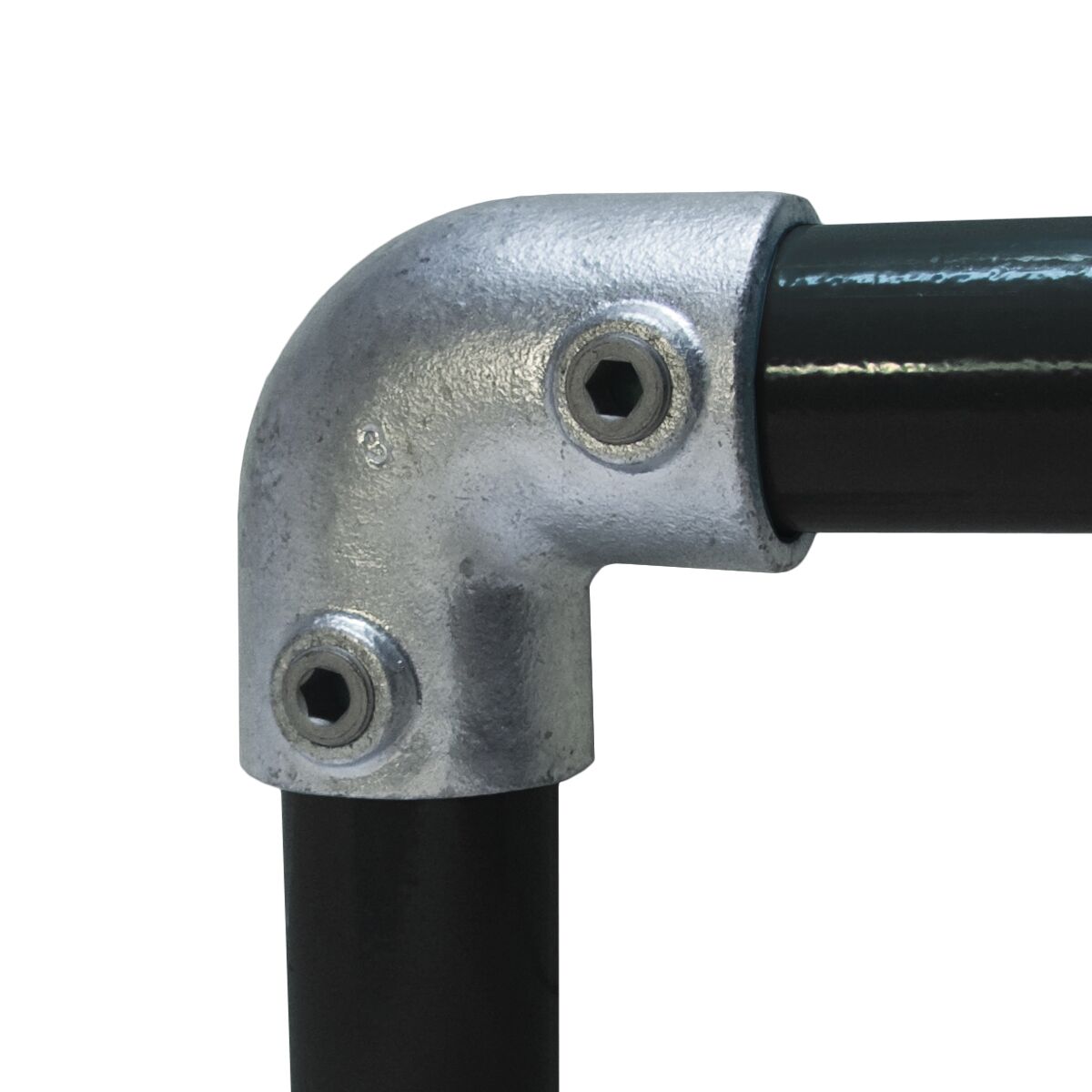

The C02 90° Elbow joins two tubes at a right angle with both tubes stopping inside the fitting. It is the corner fitting of the FastClamp range: railing ends, frame corners, the top of an end post, the turn at the head of a flight of stairs.
Each socket has its own grub screw. Pair it with the C03 Short Tee for the intermediate posts on a run of guardrail, and with the C25 Short Tee Swivel where the corner is not a true 90°.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C03 Short Tee, C04 Long Tee, C25 Short Tee Swivel (Normally used in pairs), C65P Plastic End Cap
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
