Description

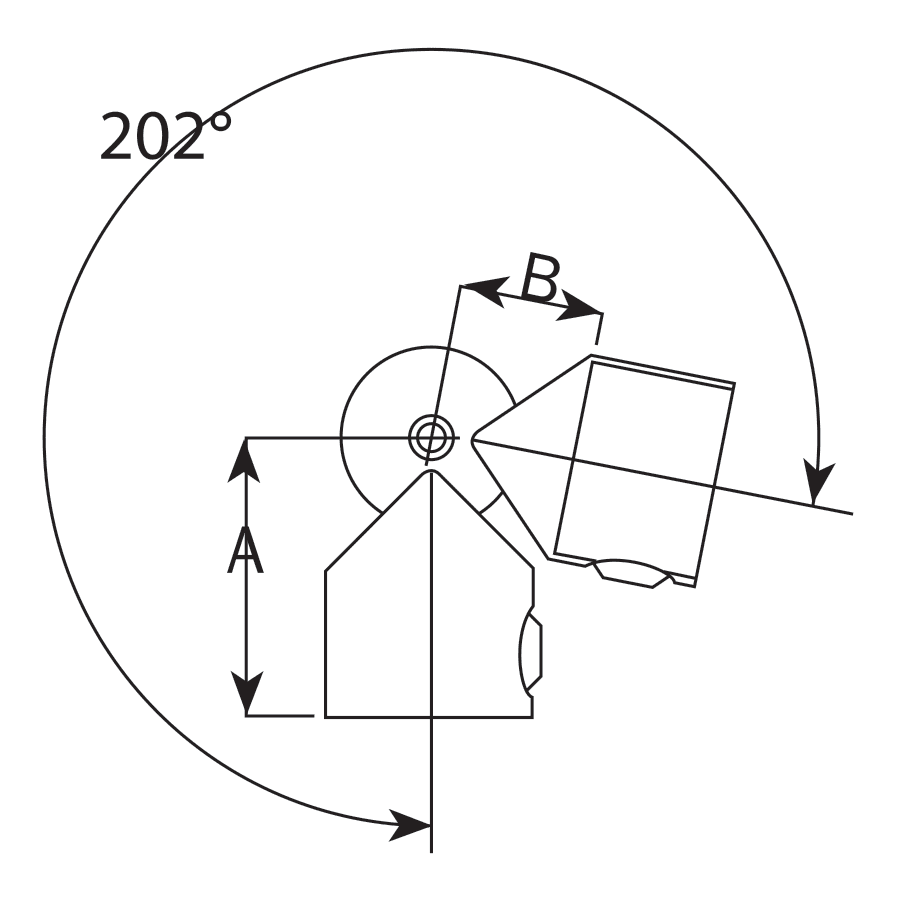

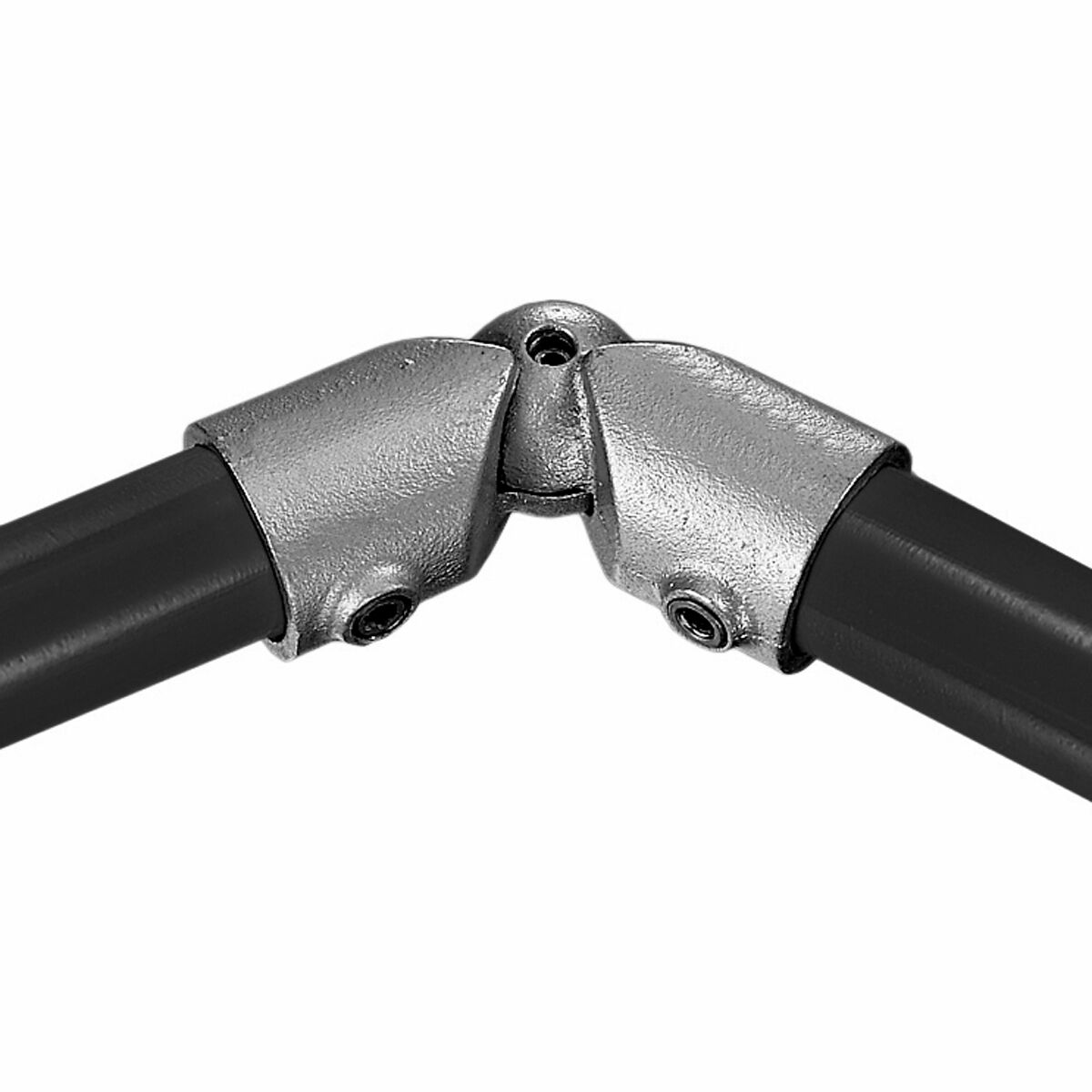

The BC05 Swivel Elbow is a variable-angle in-line connection adjustable through 202°. Two socket halves pivot on a central pin, so one fitting covers every angle from a straight run through to an acute return.
Use it on handrail that follows a changing line, on canopy frames and wherever a fixed-angle elbow will not fit.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C05 Variable Elbow (15° to 60°), C45 Single Swivel Combination
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
